Metecno insulation products covers whole range of thermal and sound insulation appliances for domestic and large scale of industrial use.

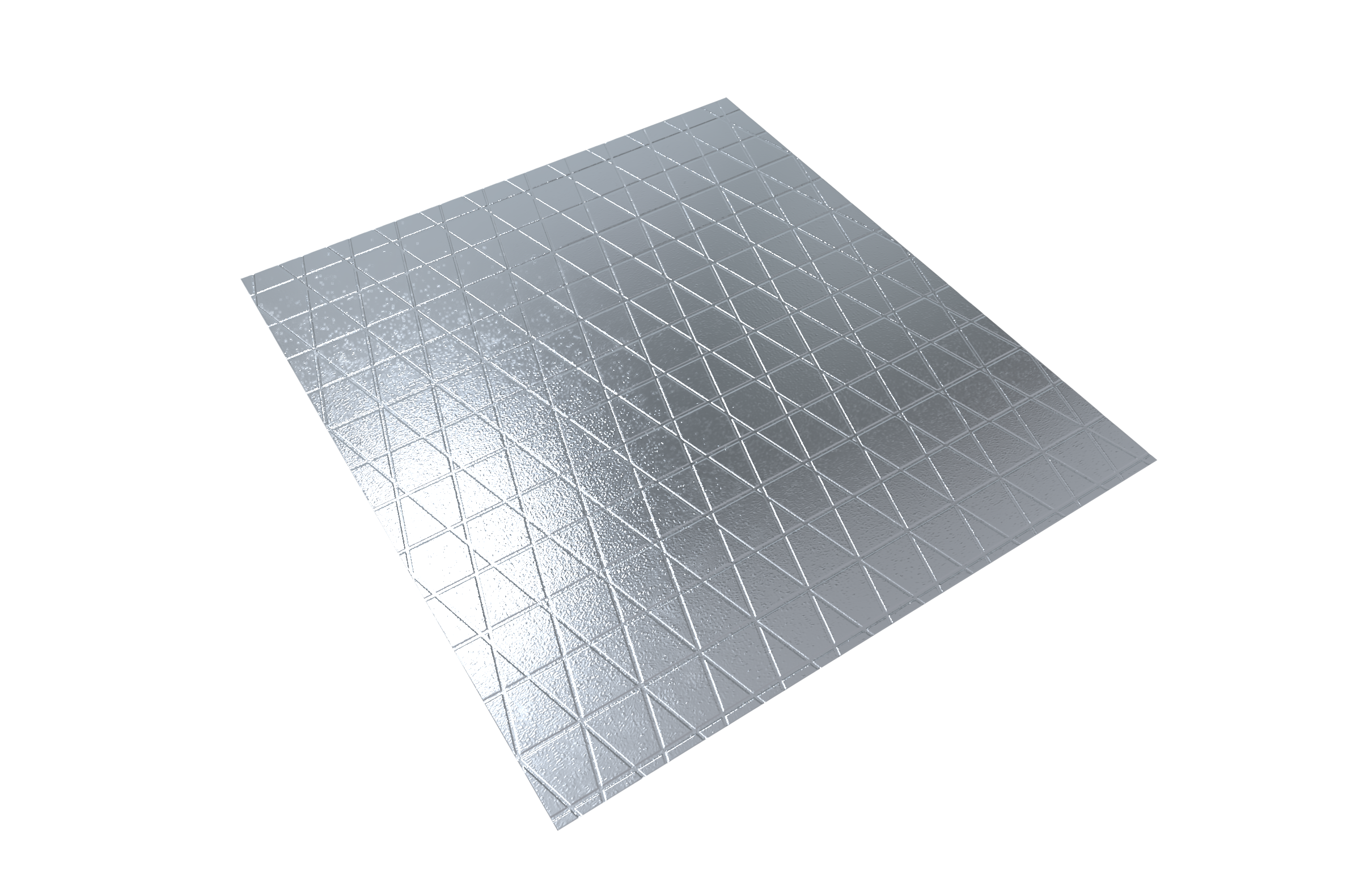

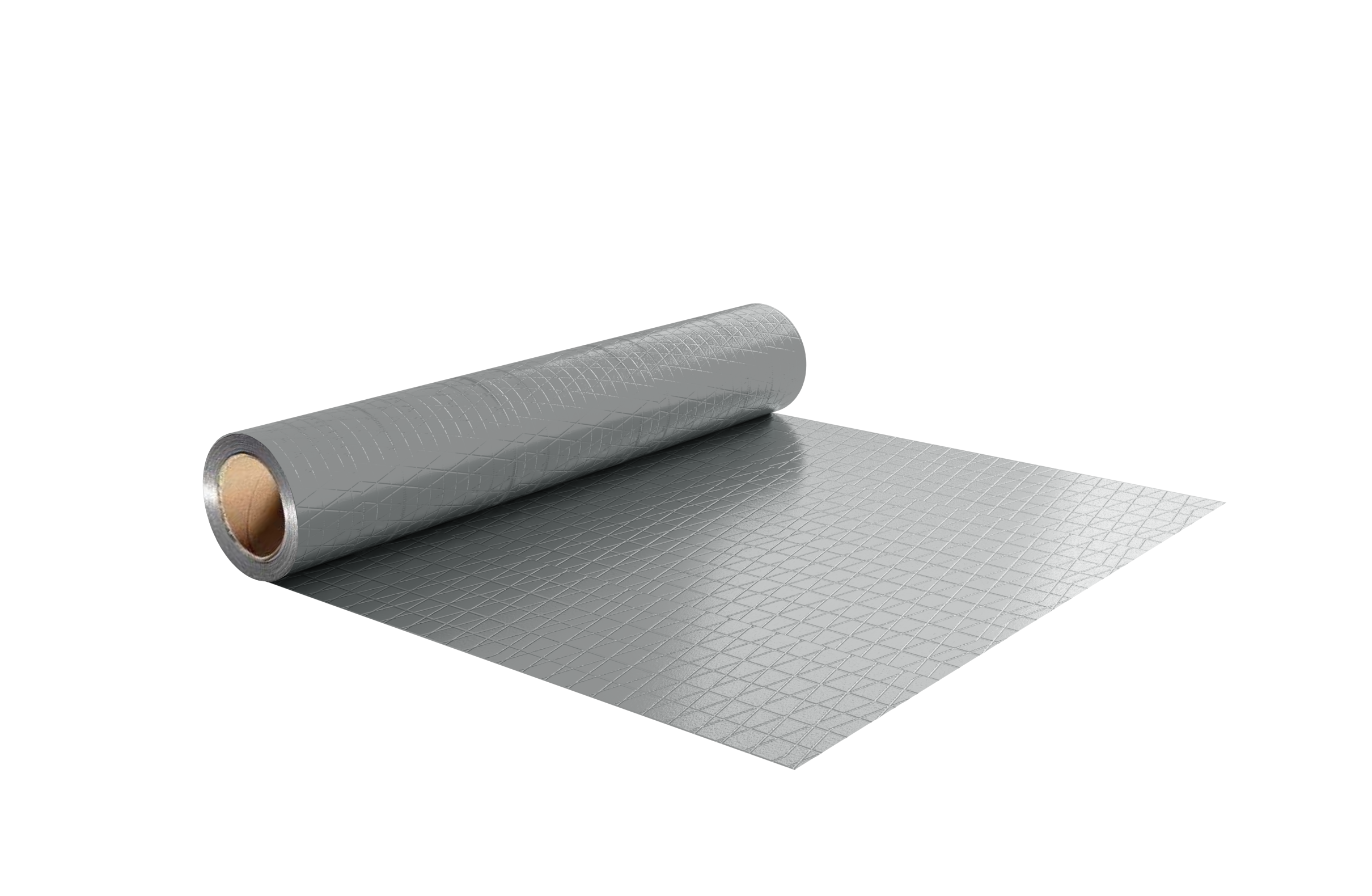

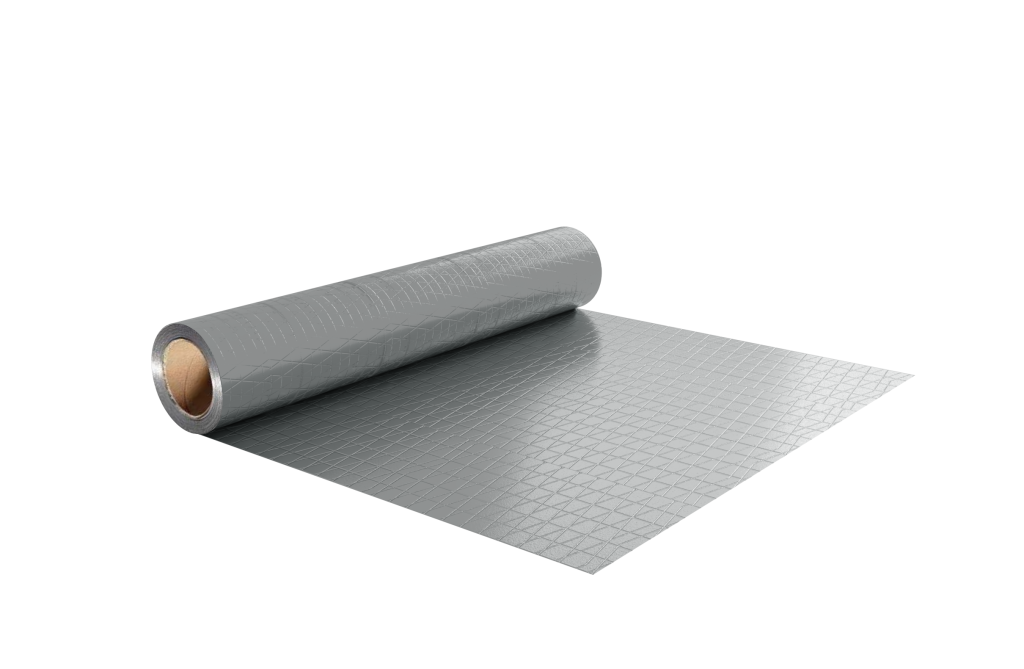

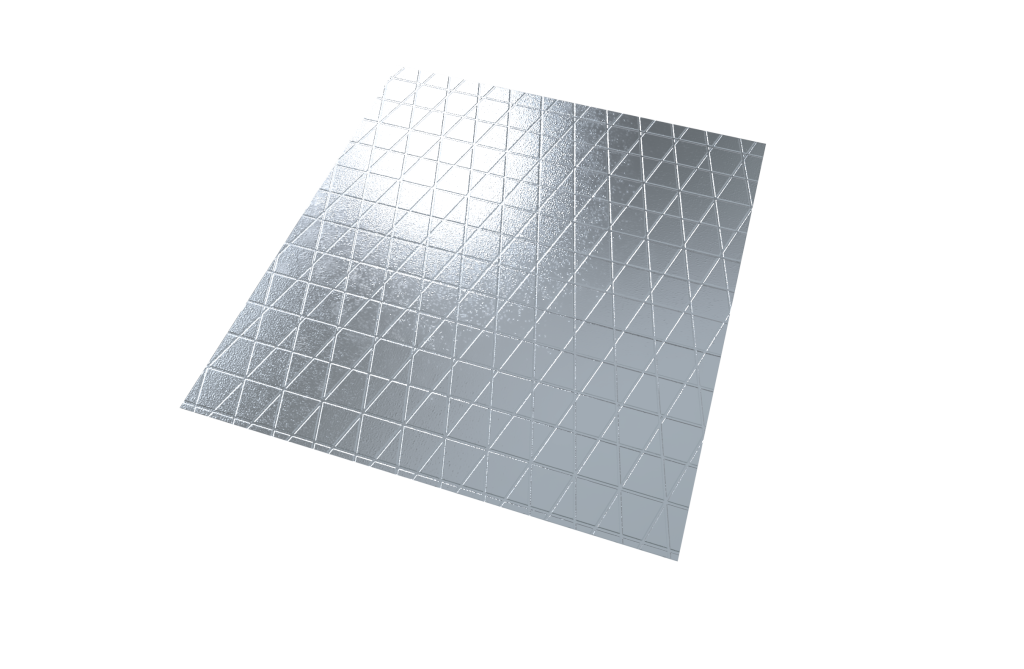

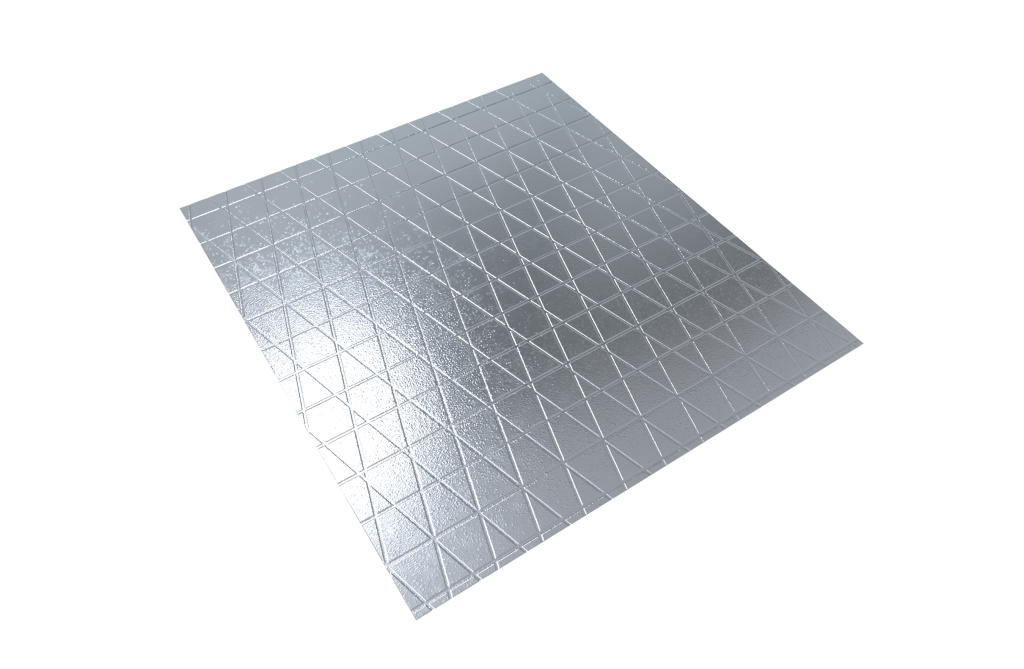

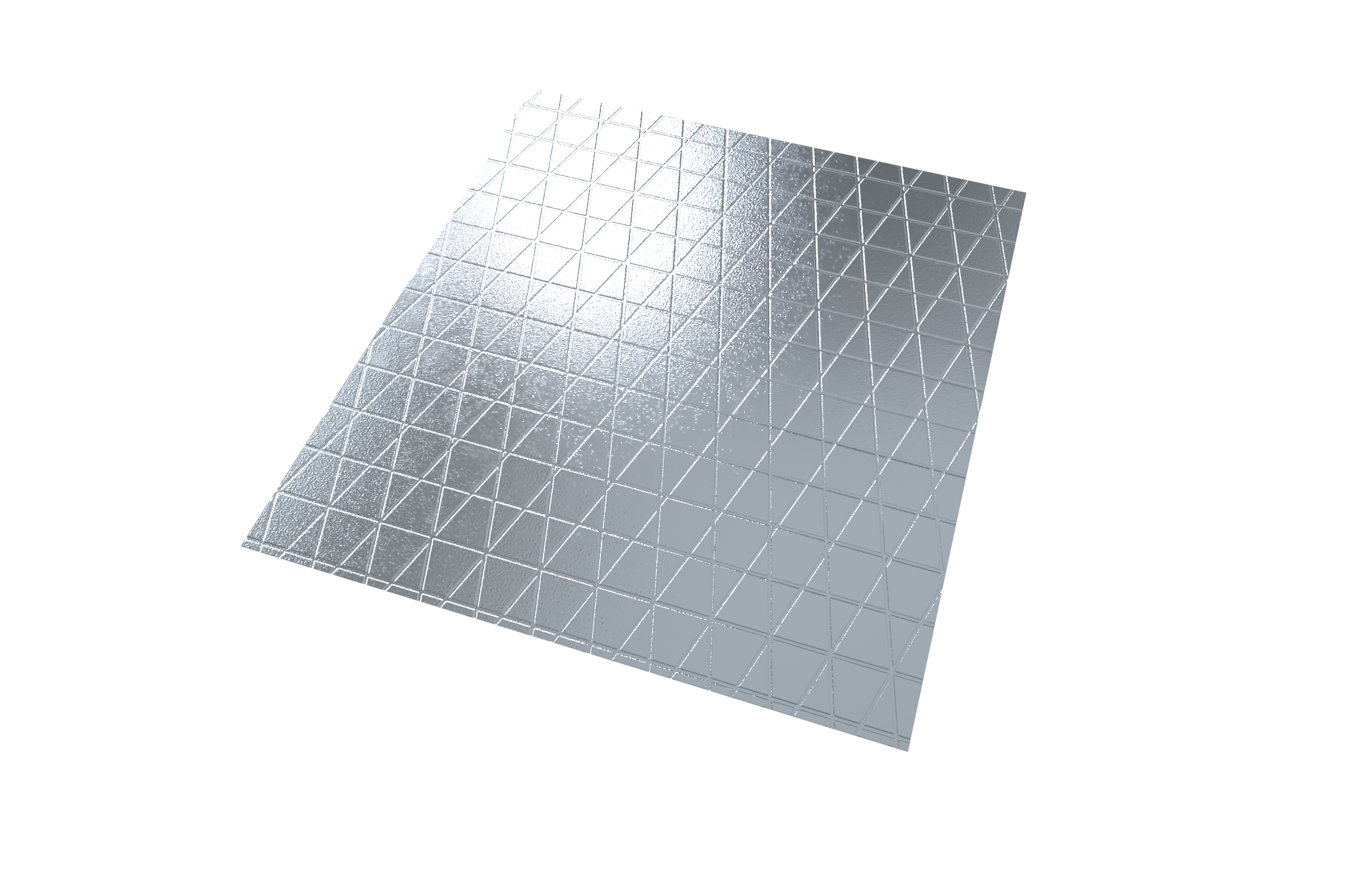

Aluminium Foil
A highly reflective radiant heat barrier as well as a vapor barrier. Aluminium foil is laid under the roofing sheets as a heat reflector. This material is three way reinforced for maximum strengths and durability.
| Foil type | Roll size | Roll area | Weight |
| 3 Way Single Sided | 1.25m x 60m | 75m2 | 8 Kg / roll |
| 3 Way Double Sided | 1.25m x 60m | 75m2 | 10.2 Kg / roll |
| Tensile Strength M.D. | 1,500N/25mm x D.60N25mm (ASTM D828) |
| Surface Reflectivity | 0.95 (ASTM D1263) |
| Water vapor transmission rate | 5.75 ng/N.s (ASTM E96) |
| Reflectivity | 95% |
| Emissivity | 5% |

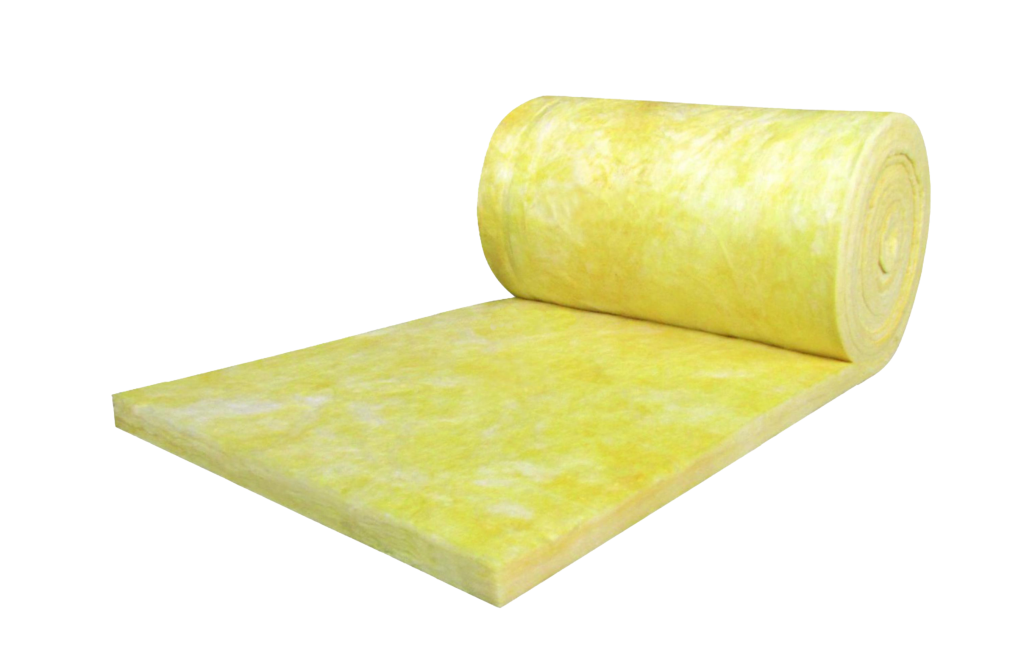

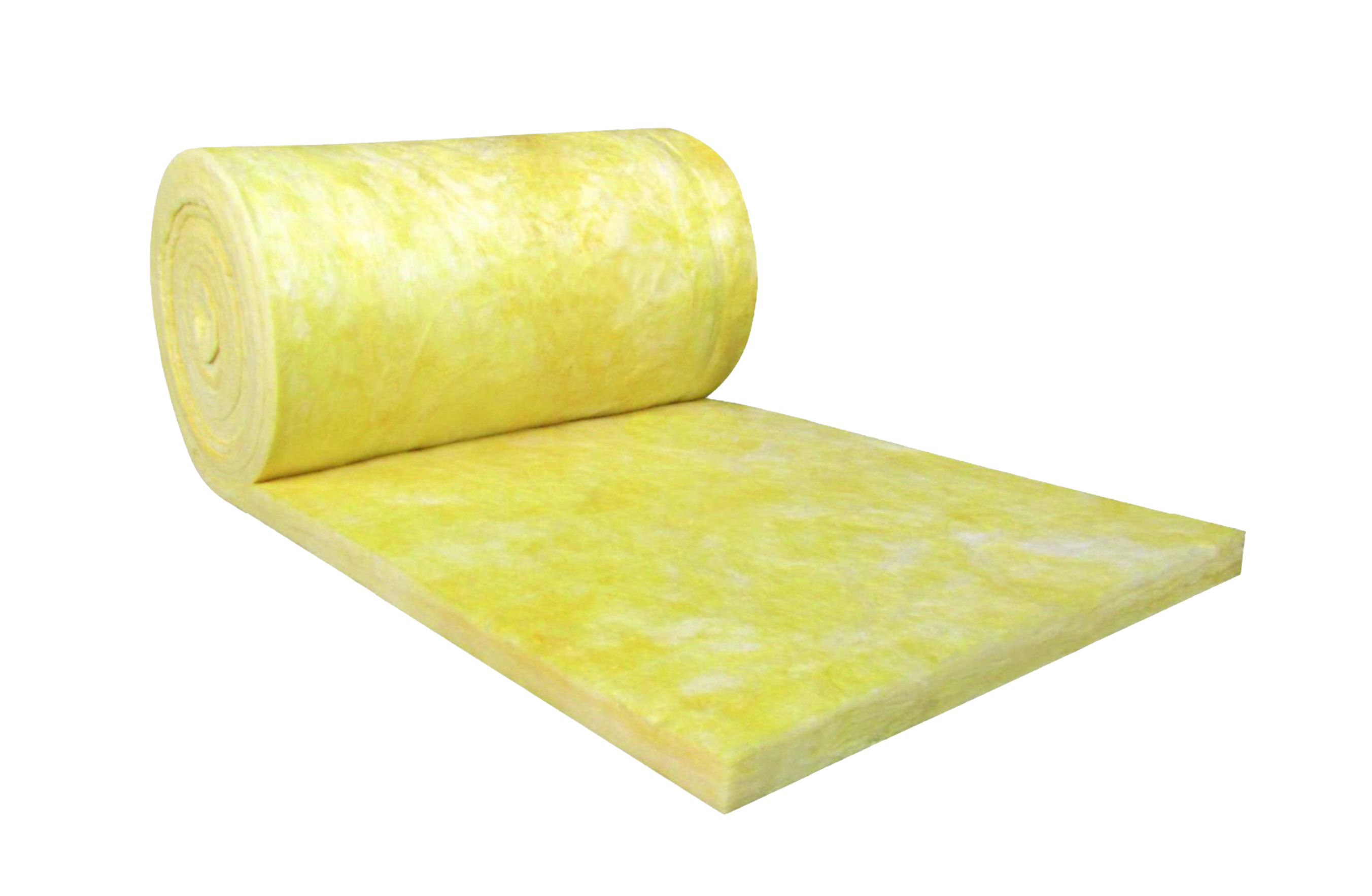

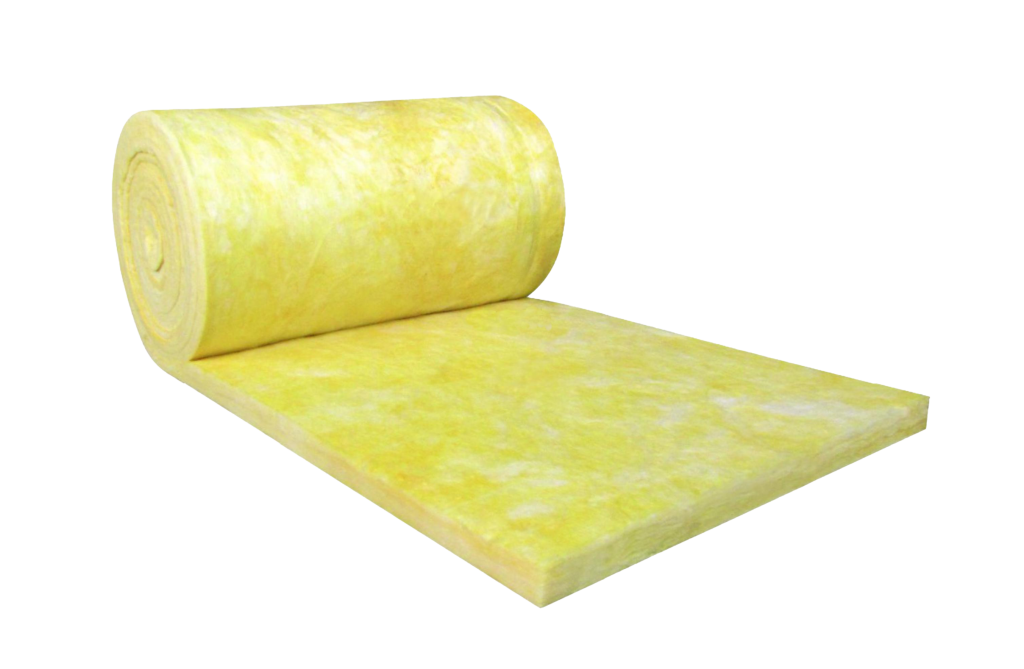

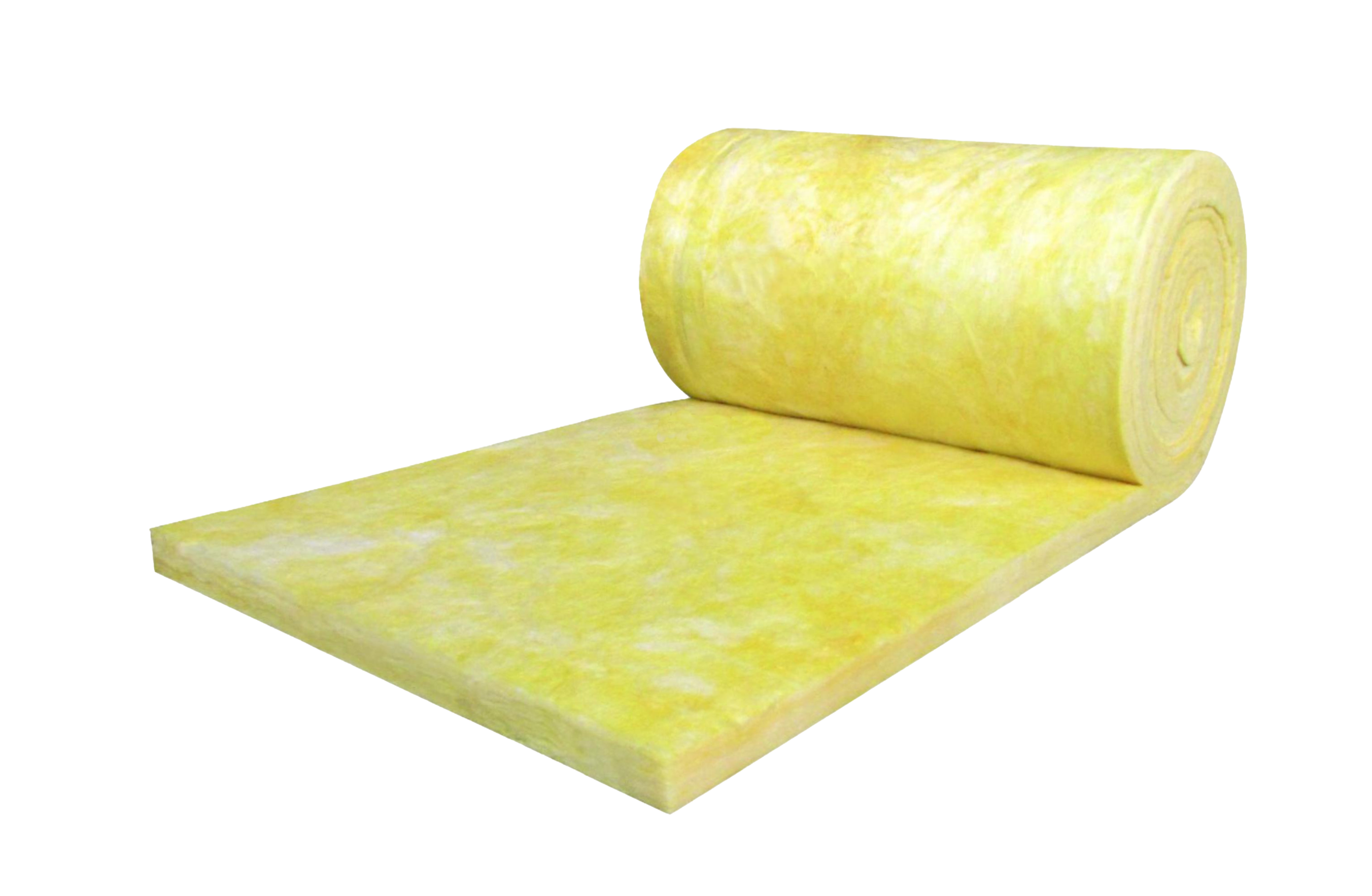

Glass wool
An Excellent flexible sound barrier and conductive heat barrier. Glass wool is laid under the roofing sheets as a heat and sound barrier. This material comes in different thicknesses and densities for different applications.
| Glasswool type | Roll size | Roll area | Density | Conductivity | R value |
| 20 x 25 | 1.2m x 20m | 24m2 | 20 kg/m2 | 0.039 W/mK | 0.65 m2K/W |
| 16 x 50 | 1.2m x 15m | 18m2 | 16 kg/m2 | 0.039 W/mK | 1.3 m2K/W |
Specifications
| Temperature Range | -4 0C to 121 0C (ASTM C411) |
| Moisture Absorption | 3% < at 49 0C and 90% relative humidity (ASTM C1104) |
| Fire Rating Class | 0 (BS 476) |
| No support or promote mold or fungus growth (ASTM C665) |
INSULATION
Galvanized Mesh
A strong and durable support for insulation. Galvanized mesh is used under the roofing sheets to hold insulation materials such as foil and glass wool in place.
| Mesh type | Roll size | Roll area | Weight | Coating | Wire gauge |
| 3 x 3 | 1.8m x 30m | 54 m2 | 17.6 Kg/roll | Zinc 45g/m2 | BWG 17 (1.37mm) |
Specifications
| Tensile Strength | 38.8 N/mm2 |
| Wire diameter tolerance | +0.01 mm |
| Standards of Conformation | QB/T/T 3897 – 99 China |
| Manufactured with iron coated with Zinc (Galvanized before weld) |
